Indoor Fine Pitch HD LED Display (P1.2 / P1.5 / P1.8/2.5)
Product Overview
This series is a high-resolution indoor display solution featuring die-cast aluminum cabinets. It offers multiple pixel pitch options and is designed as a seamless alternative to traditional LCD video walls and projection systems.
Core Technical Features
1. Native 16:9 Aspect Ratio
Resolution Matching: The cabinet is designed with a 16:9 ratio, allowing for the direct assembly of standard 1080p (2K), 4K, or 8K resolutions.
Point-to-Point Display: It achieves pixel-to-pixel mapping without the need for complex scaling via video processors.
2. Full Front Maintenance Design

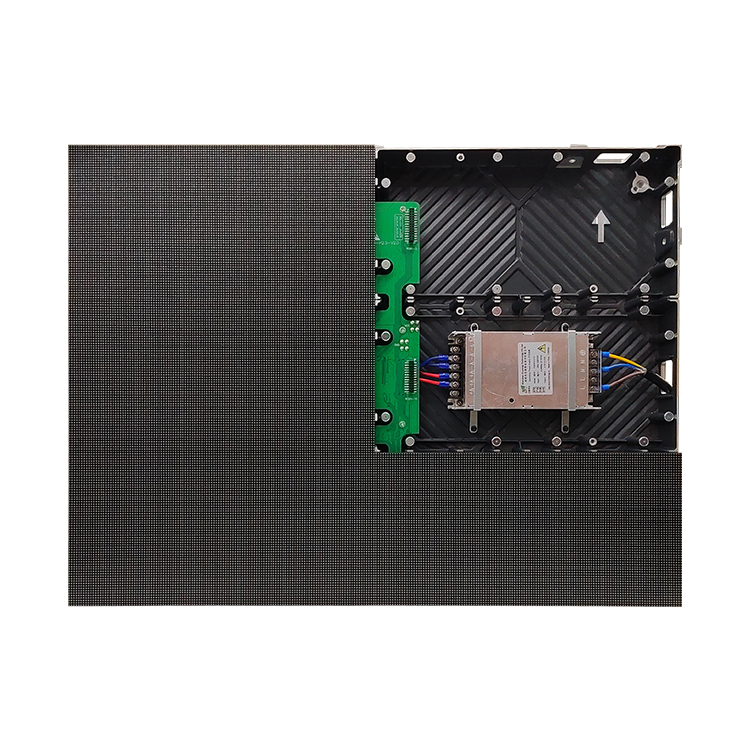

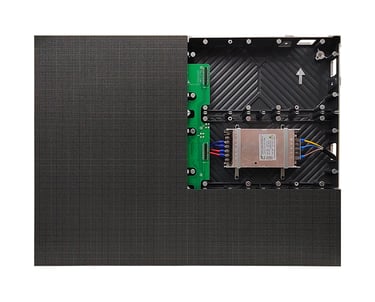

Magnetic Modules: Modules are secured by magnets and can be removed from the front using a vacuum suction tool.
Space Efficiency: Supports wall-mounted installation without the need for a rear maintenance path, reducing the physical footprint in the room.
3. Display Performance
Refresh Rate: A refresh rate of ≥3840Hz ensures no flickering or scan lines when captured by professional cameras or smartphones.
Low Brightness & High Gray Scale: Maintains a 14-16 bit grayscale even at low brightness levels (e.g., 100-300 nits), preventing loss of detail in indoor environments.
Viewing Angle: Provides a 160° horizontal and vertical viewing angle, ensuring consistent color and clarity from various positions.
4. Cabinet Structure and Alignment

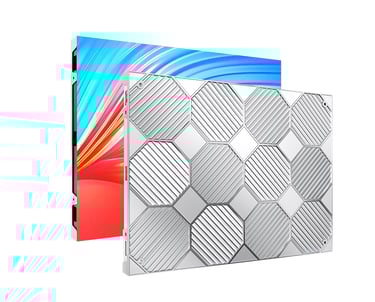

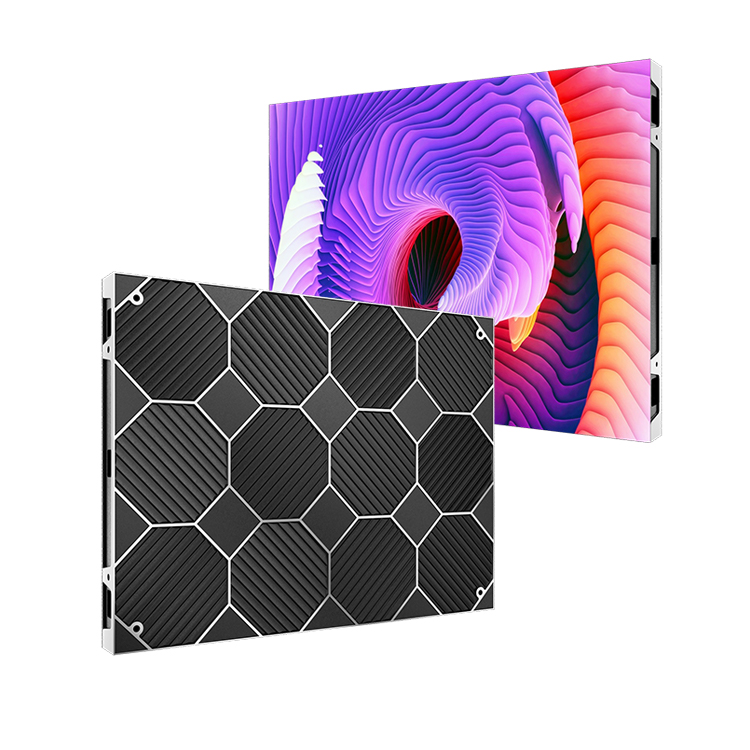

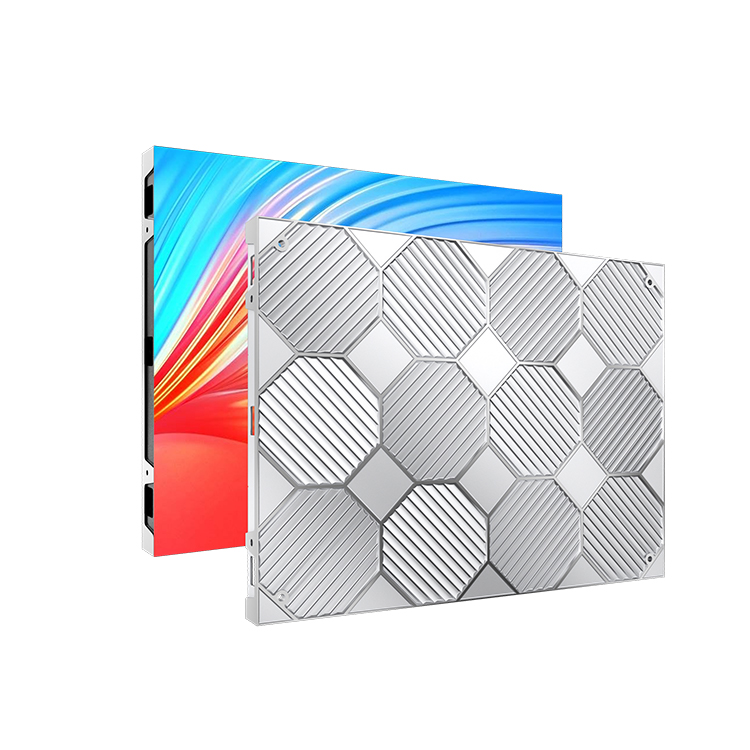

Die-Cast Aluminum Process: Cabinets are manufactured using high-precision CNC machining, with physical tolerances kept under 0.1mm to ensure a flat, seamless surface.
Silent Operation: Features a fanless design with natural heat dissipation through the metal chassis, resulting in 0dB operating noise.
Technical Specifications
Item P1.25 P1.53 P1.86 P2.5
Pixel Pitch (mm) 1.25 1.53 1.86 2.5
Pixel Density (dots/㎡) 640,000 422,500 288,900 160,000
Cabinet Size (mm) 600 x 480
Max Brightness (cd/㎡) 600 - 800
Contrast Ratio 5000:1
Maintenance Access Full front maintenance
Applications

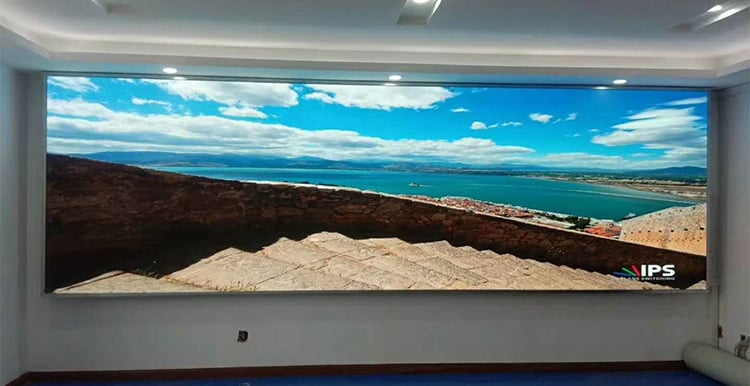

Corporate Meeting Rooms: For presenting high-resolution PPTs, video conferences, and data charts.
Control & Command Centers: For multi-signal monitoring requiring a seamless surface and sharp text.

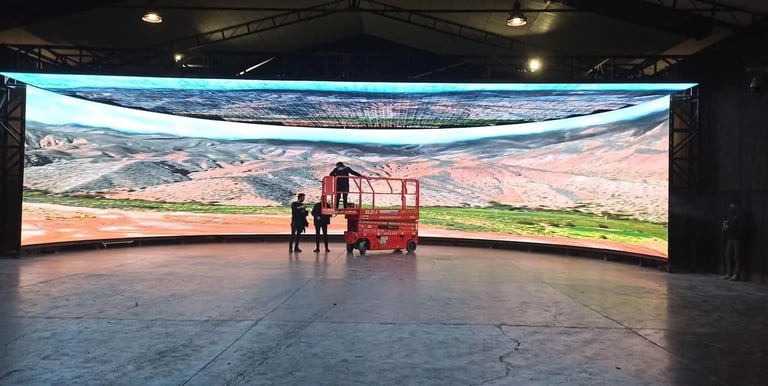

Broadcast Studios: For use as a backdrop requiring stable imagery and accurate color reproduction under studio lighting.

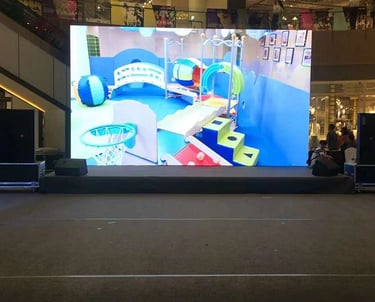

Exhibition & Showrooms: High-definition information display for close-range viewing in commercial spaces.
Packaging & Support
Packaging: Shipped in reinforced wooden crates or shock-proof flight cases.
Warranty: 2-year hardware warranty included.
Technical Support: Installation diagrams, wiring layouts, and remote system commissioning services are provided.
