Outdoor Naked-Eye 3D Advertising LED Display Series
Product Overview
This series is designed for fixed outdoor advertising installations, specifically engineered to support naked-eye 3D content through seamless corner transitions. The display provides high brightness for daytime visibility and a high refresh rate for camera compatibility.
Core Technical Characteristics

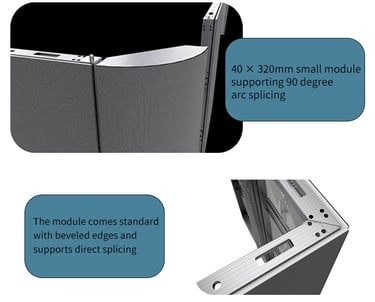

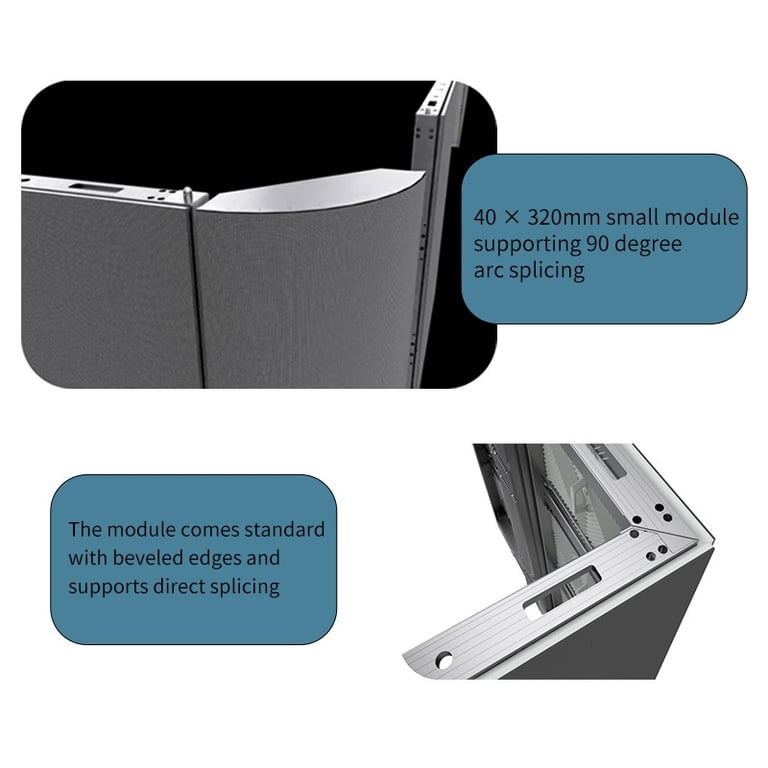

1. Seamless 90° Corner for 3D Effects
Right-Angle Design: The cabinets are available in 90-degree curved or mitered versions to fit building corners.
Visual Continuity: This structure allows for the seamless playback of 3D video content, creating a depth-of-field effect without visible gaps at the corner.
2. High Environmental Stability
Brightness: Standard brightness ranges from 5,000 to 8,000 nits, ensuring the screen remains visible under direct sunlight.
Protection Level: The panels are IP65 rated for dust and water resistance, suitable for all-weather outdoor operation.

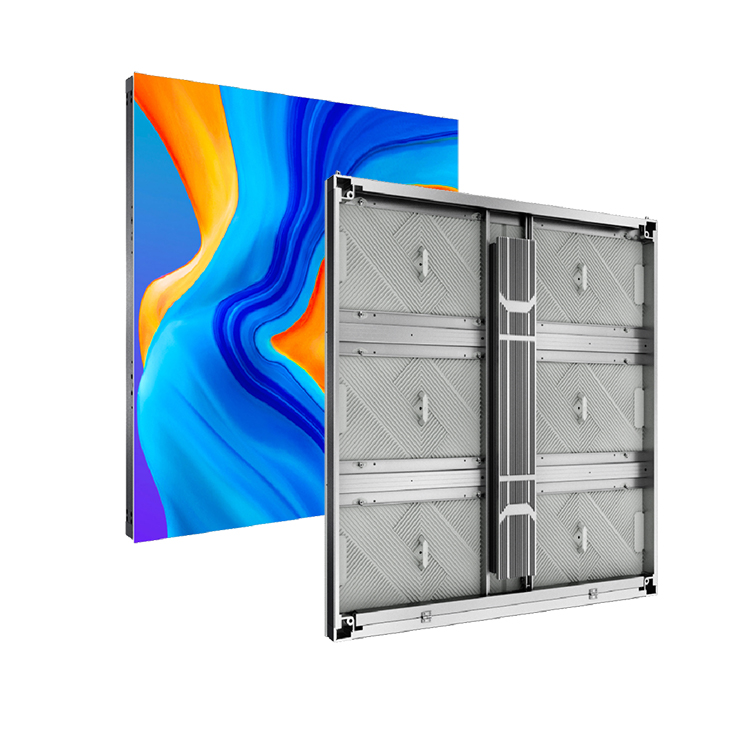

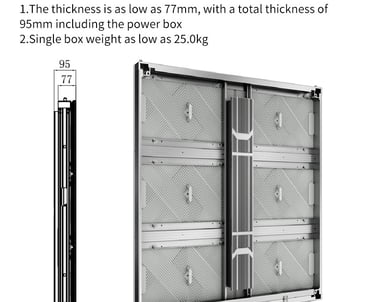

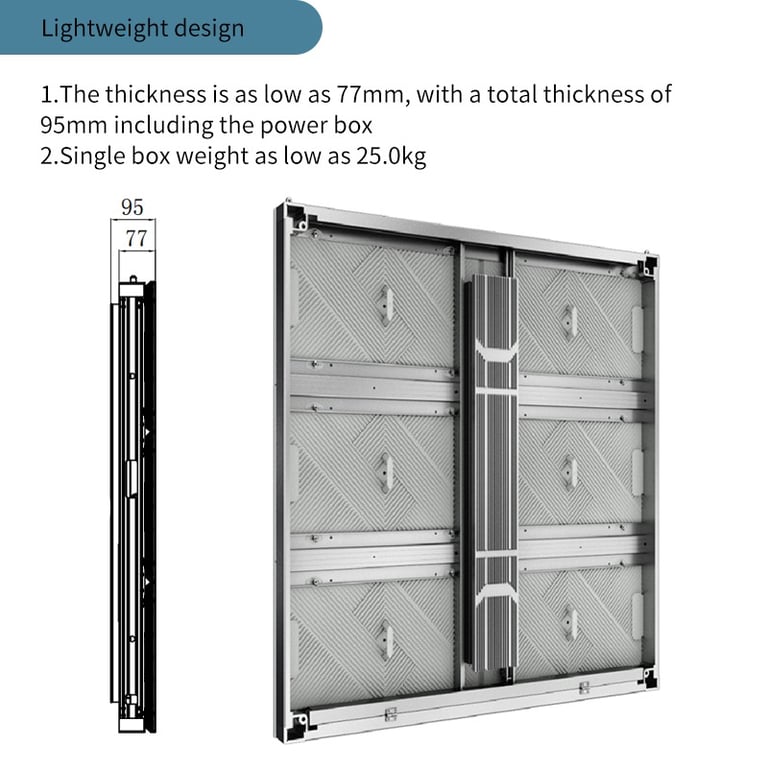

Heat Dissipation: Utilizes aluminum back covers or high-efficiency cooling structures to maintain stable performance in high-temperature environments.
3. Display Performance
Refresh Rate: A refresh rate of ≥3,840Hz prevents flickering and scan lines when recorded by mobile devices or cameras.
Grayscale: 14-16 bit grayscale provides smooth color transitions and accurate reproduction of advertising materials.
4. Maintenance and Installation
Service Access: Supports both front and rear maintenance options depending on the specific installation site requirements.
Modular Design: Modules, power supplies, and receiving cards are modular for faster troubleshooting and part replacement.
Technical Specifications
Parameter Specification Details
Pixel Pitch Options P4.44 / P5.7 / P6.66 /P8 / P10
Cabinet Material Die-cast Aluminum / Iron
Brightness 5,000 - 8,500 cd/sqm
Refresh Rate 3840Hz - 7680Hz
IP Rating IP65 (Front & Rear)
Contrast Ratio 5,000:1
Operating Voltage AC 110V/220V
Applications

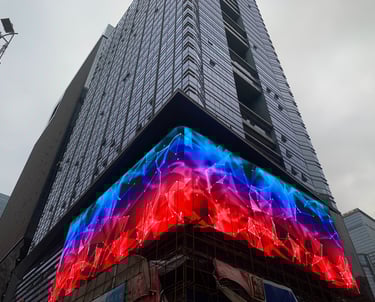

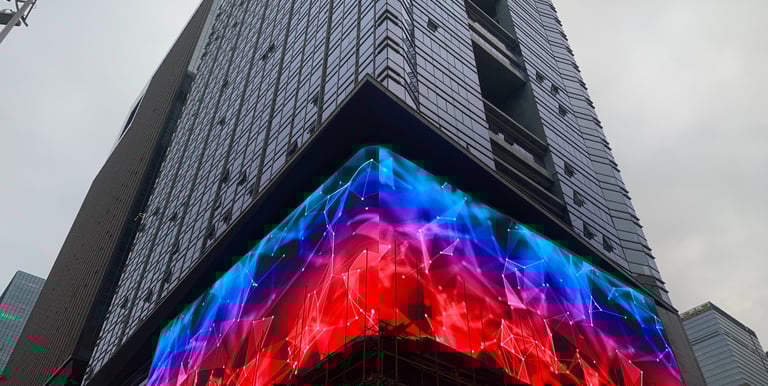

Landmark Advertising: Large-scale 3D displays on city center building facades.
Shopping Malls: High-impact visual entrances to attract foot traffic.
Transportation Hubs: Information and commercial displays at airports or train stations.
Packaging and Logistics
Packaging Options: Available in Wooden Cases or Plywood Cases for secure long-distance sea or air freight.
Flight Cases: Optional for projects requiring temporary installation or frequent relocation.
Project Support
Customization: We provide cabinet customization based on the specific dimensions and curvature of the installation site.
Technical Documents: CAD structural drawings and wiring diagrams are provided upon order confirmation.
